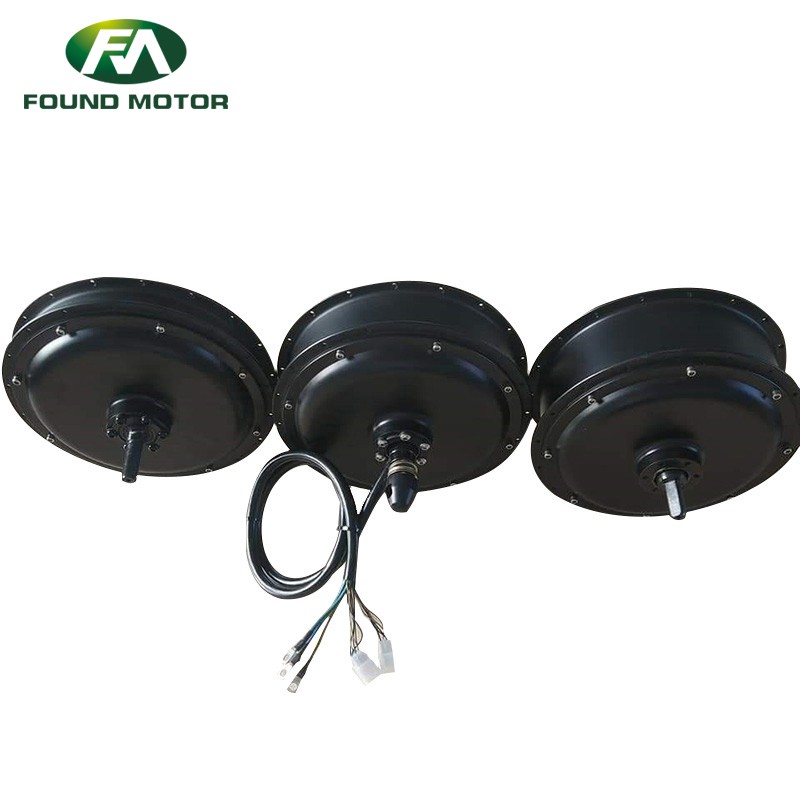

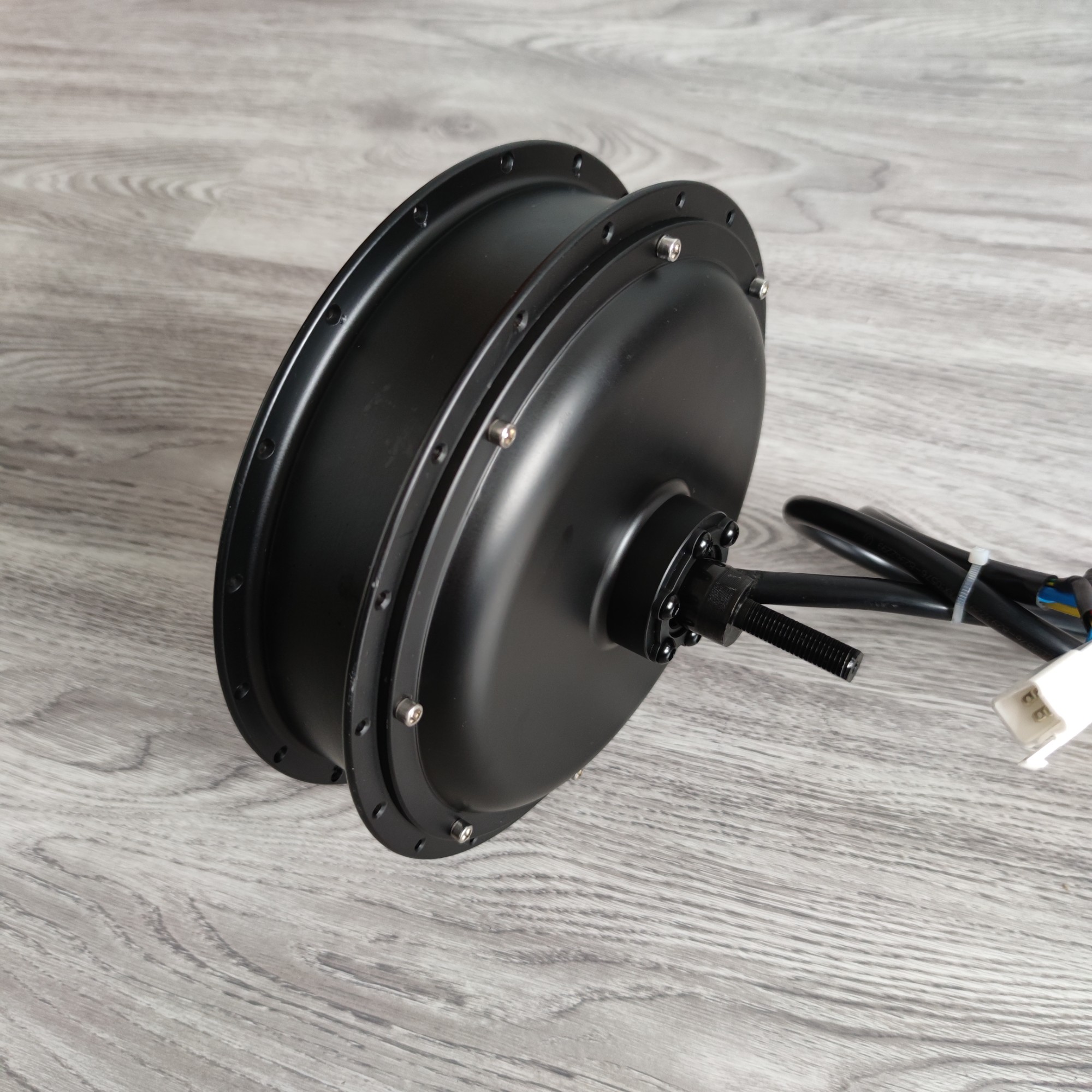

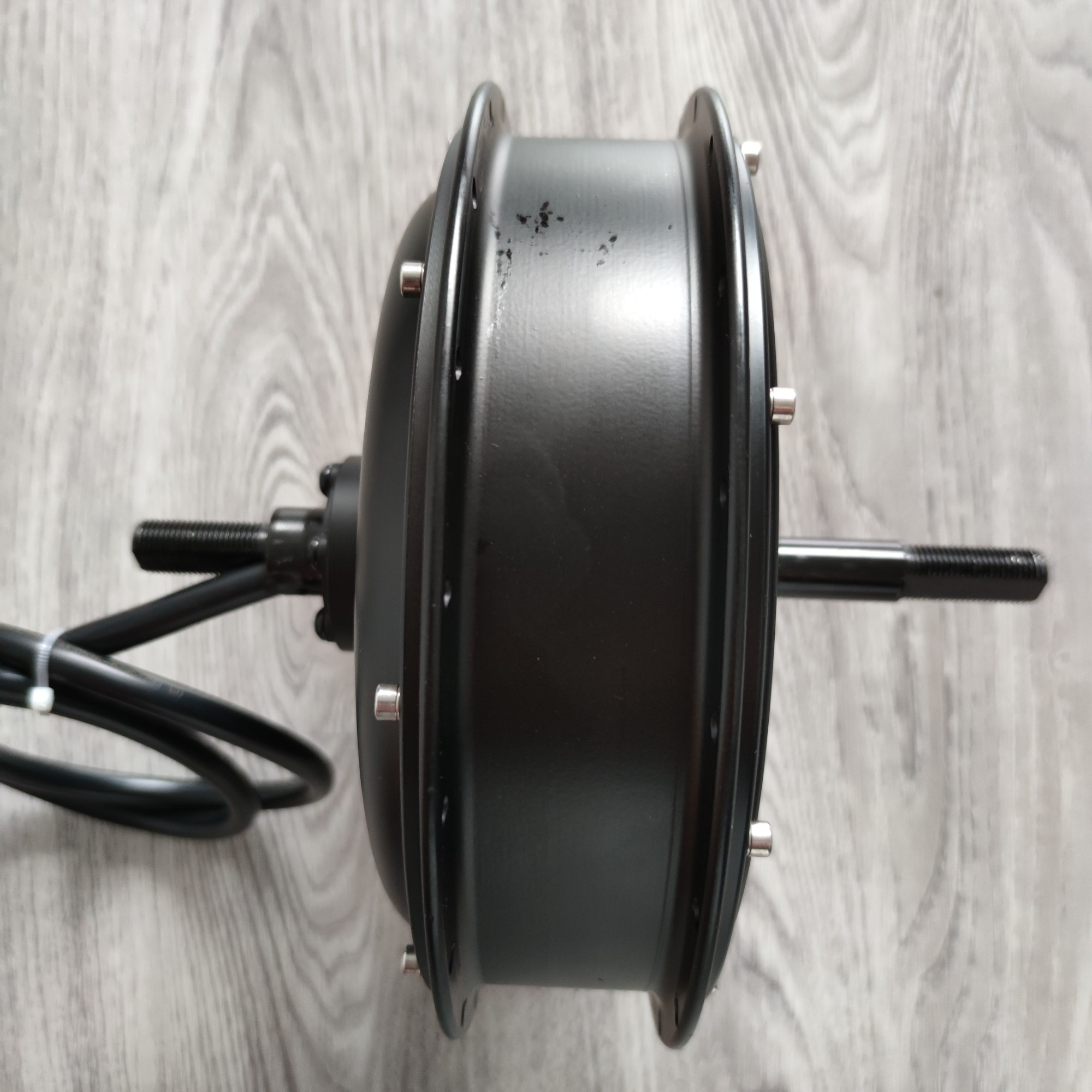

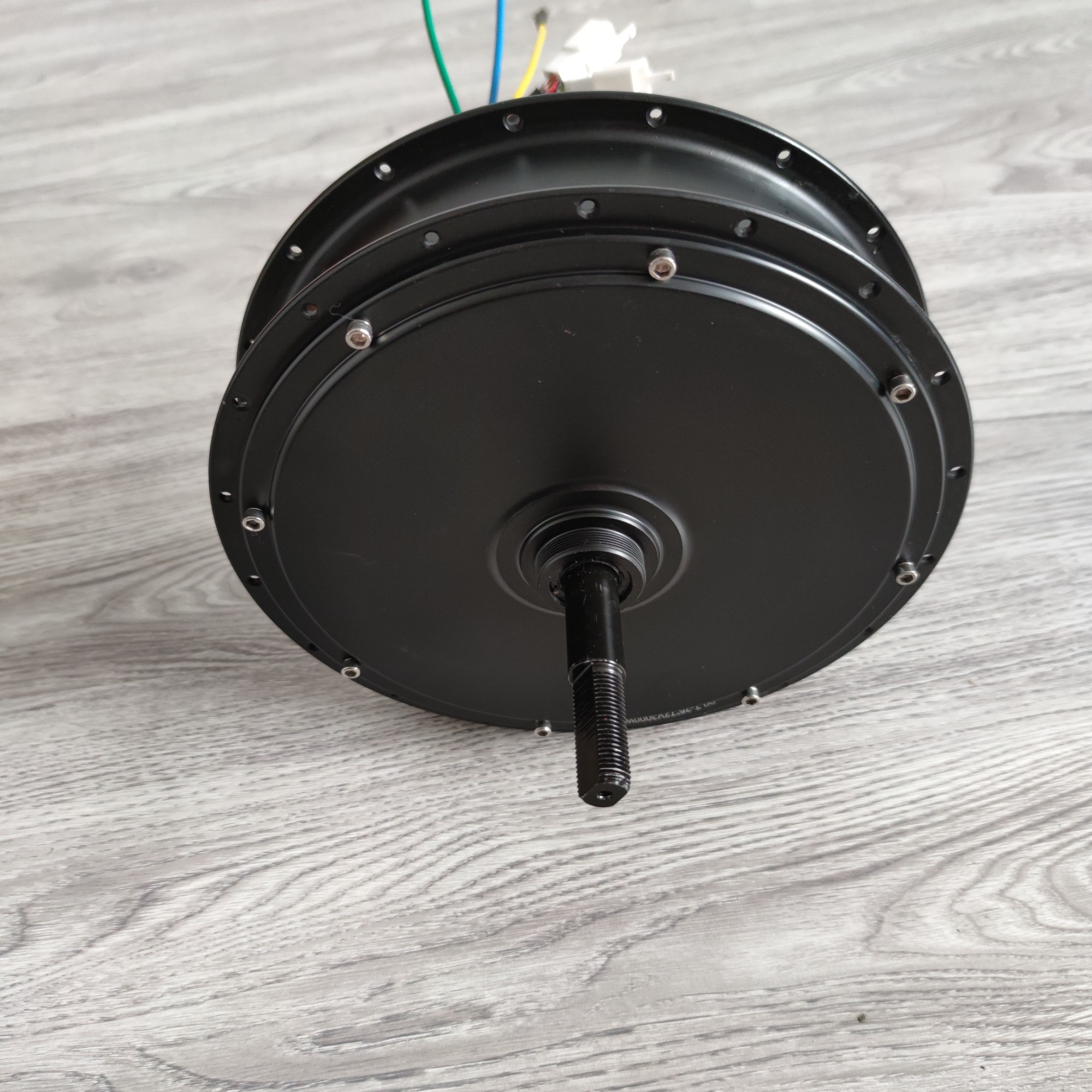

26''48V 500W brushless rear drive gearless ​fat bike motor

26''48V 500W brushless rear drive gearless ​fat bike motor with JULET waterproof cable.



Model

FM-01-02-205C-55R

Rated  Voltage(V)

24/36/48/52/60/72

Rated  power(W)

500-5000

Wheel  Size

14”-28”

Spoke   Specification

10G/12G/13G

Spoke holes

36

Rated  Speed(km/h)

25

Rated  Efficiency()

≥80

Reduction   Ratio

NA

Weight   (Kg)

8.0

Open  Size(mm)

170,180,190

Drive And Freewheel

Rear   drive/6-9S

Cable  Location

Optional

Hall  Sensor

Optional

Integrate  Speed sensor

Optional

Surface

Black/Silver

Brake   Type

V   brake/Disc   brake

Salt   fog test(h)

24/96

Noise   (db)

<55db

Waterproof   Grade

IP54/IP65





Comments

1.   Customized LOGO available.



2.   Brushless geared motor,Brushless gearless motor optional.



2.1Brushless geared motor

Normal electric bike motor  24V/36V/48V,180W-1000W

Fat bike motor  36V/48V/52V/60V,250W-1200W



2.2Brushless gearless motor

Normal electric bike motor

36V/48V/52V/60V/72V,250W-1500W

Fat bike motor   36V/48V/52V/60V/72V 500W-8000W



3.Normal electric bike motor & electric bicycle motor available

Front drive motor(dropout 100mm)

Rear drive single speed motor(dropout 125mm)

Rear drive 6-9 speed motor(dropout 135mm)

Rear drive 6-11 speed cassette motor(dropout 142mm)



4.Fat bike motor

Front drive motor(dropout 100mm)

Rear drive 6-9 speed motor(dropout 170-190mm)

Rear drive 6-11 speed cassette motor(dropout 170-190mm)

  PS:Rear drive fat bike motor with dropout 150-155mm can be Customized



5.Spoke hub motor can be assemblied with double layers/wall aluminum rim,16-28*1.75-2.125,fat bike motor,16*4.0,20*4.0,26*4.0.



6.Spoke hub motor normally with 36 holes,24 holes,72holes can be customized.



7.Our motor with Dacro screws/nuts, gaskets(flat pad,stop pad),black rubber sleeve

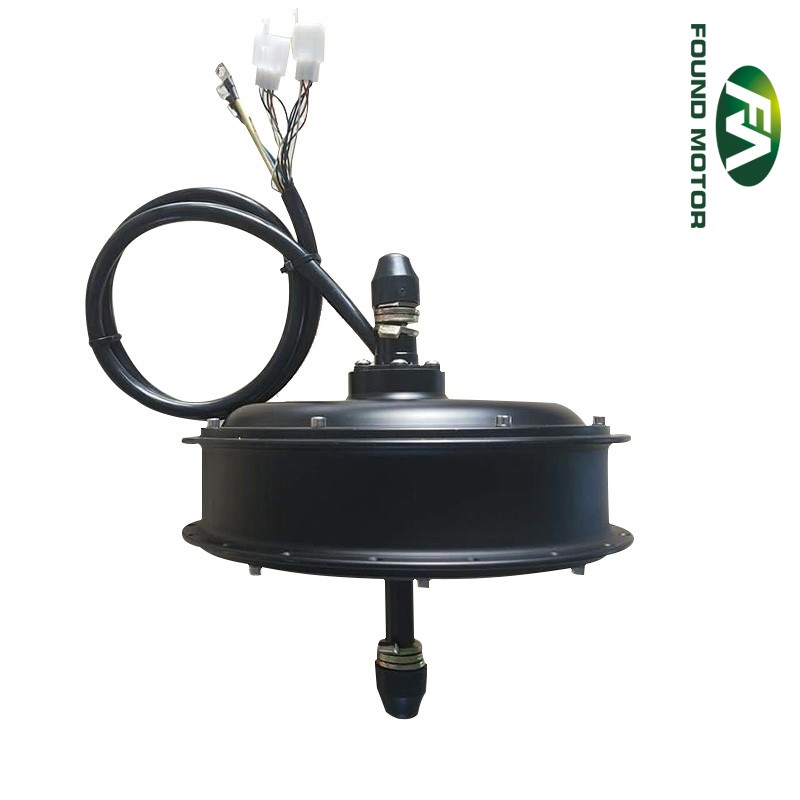

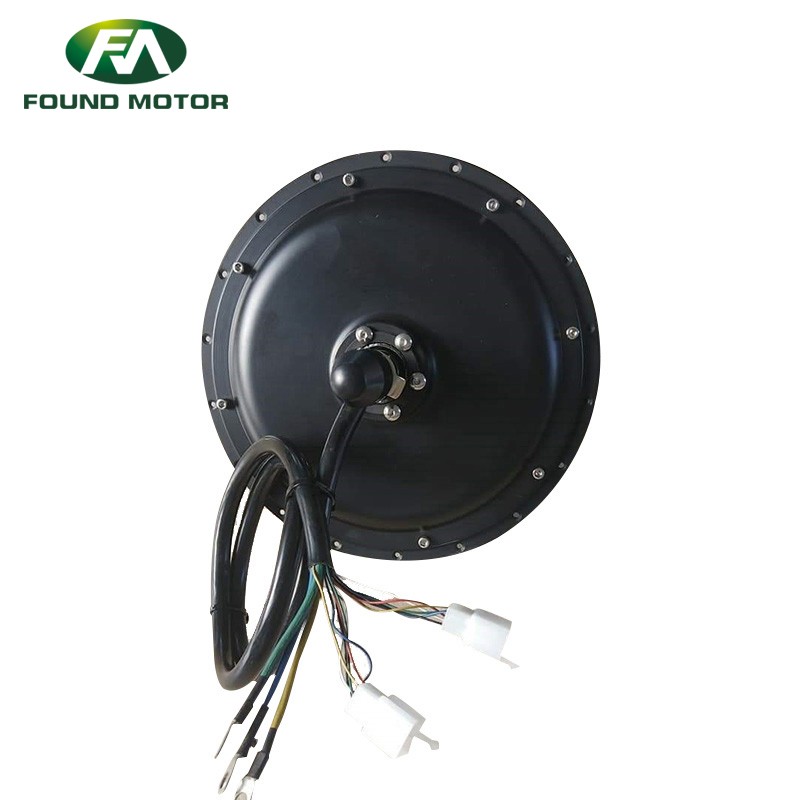

8.Our motor with JULET waterproof cable.



9.All motors have matching electric control systems,Throttle with battery indicate,Throttle with digital display,LED & LCD control systems optional.
